CANNIBAL PRIDE DIY PCB BUILD DOC

Hey! Thanks so much for picking up a tape!

I hope you enjoy building up this PCB to make your own noise/drone synthesizer.

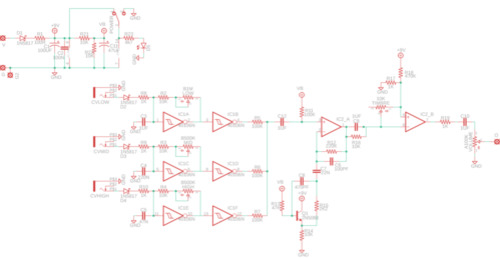

Cannibal Pride is a 3 oscillator drone synth with CV sync for each oscillator and a ‘Smother’ control (Labeled Timbre on the PCB) that suffocates the drones down to geiger-counter like fragments of noise. Each oscillator is set to a different frequency Low, Mid and High. The low control falls into LFO territory and controls the overall pulsing of the drones. You can adjust the frequency of the drones by increasing/decreasing C3 (low), C4(mid) or C5(high). The bigger the capacitor the lower the oscillator frequency, the smaller the capacitor the higher the frequency. The size of the potentiometer determines the range of the oscillator so as the pot size increases so does the range. You can experiment with changing these values to tune the drones to your own liking. The preset values are where I felt they worked best but feel free to experiment!

If you are new to building DIY PCBs or just would like a refresher then I have a video build guide uploaded to the Holy Island Youtube channel here:

RESISTORS
R1 - 100R
R2, R3, R4, R14, R16, R21, R22 - 10K
R5, R6, R7, R11 - 100K
R8, R9, R10, R17, R19 - 1K
R12 - 220K
R13 – 47K
R15 - 2K2
R18 - 470K
R23 - 4K7

DIODES
D1,D2,D3,D4 - 1N5817
D5 - 5MM LED

CAPACITORS
C1,C11 - 100UF
C2 - 100N
C3,C9,C10,C12 - 1UF
C4 - 220N
C5 - 47N
C6 - 100PF
C7 - 22N
C8 - 470PF

POTENTIOMETERS
(ALL 9MM METAL PCB MOUNT)
LOW - B1M
MID,HIGH - B500K
VOLUME - A100K
TIMBRE/SMOTHER - B10K

SWITCHES
SPDT ON/ON

JACKS
3 x THONKICON MONO JACK
1 x 6.35mm MONO JACK
1 x 2.1MM DC JACK

IC
IC1 - CD40106
IC2 - TL072 (OR ANY DUAL OPAMP WITH MATCHING PINOUT)

TRANSISTORS
Q1 - 2N5088

OPTIONAL
8 PIN AND 14 PIN SOCKETS FOR IC’S
125B ENCLOSURE (YOU CAN USE WHATEVER YOU LIKE)
